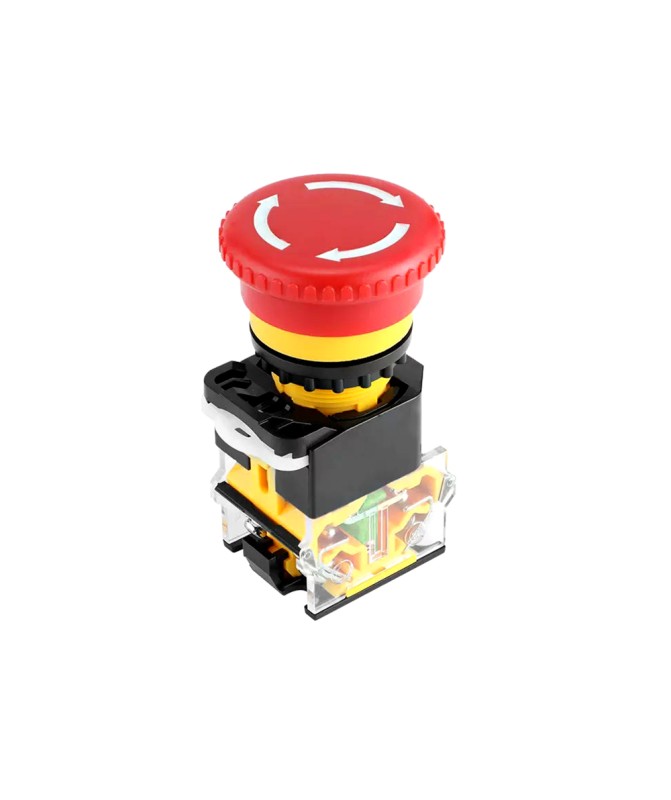

Emergency STOP Button - LA38-11ZS
Technical specifications:
Model: LA38-11ZS
Type: Emergency Stop button
Mounting hole: 22 mm
Contacts: 1NO + 1NC
Rated current: 10A
Operating voltage: up to 440–660V
Action type: self-locking (push-lock / rotate-release)
Button diameter: ~40 mm
Material: plastic + metal contacts (silver alloy)
Operating temperature: approx. -25°C to +65°C
Lifespan: up to millions of cycles (mechanical and electrical)
Weight: 0.054 kg.
LA38-11ZS is an industrial emergency stop button of the mushroom type, designed for rapid and safe shutdown of machines and electrical systems in emergency situations.
The button features a self-latching mechanism – when pressed, it remains in the STOP position and requires manual release by turning, ensuring safety and preventing accidental reactivation.
Suitable for installation in electrical panels, CNC machines, industrial equipment, and automated systems.
Key advantages:
✔ Rapid emergency machine shutdown
✔ Self-latching mechanism for safety
✔ Bright red button – easily visible
✔ Universal mounting (Ø22 mm standard)
✔ Reliable operation in industrial environments
✔ Long service life
Applications:
✔ CNC machines
✔ Production lines
✔ Electrical panels
✔ Pneumatic and hydraulic systems
✔ Machinery and automation
✔ Compressors and industrial equipment
