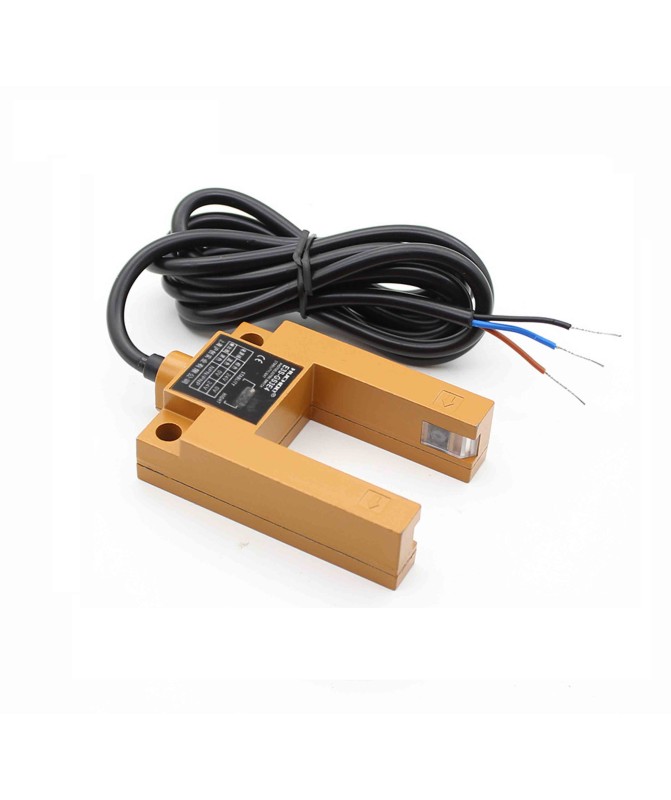

Photoelectric Sensor E3S-GS30P1 – PNP, U-type "channel", ~30 mm, DC 12–24V

Photoelectric Sensor E3S-GS30P1 – PNP, U-type "channel", ~30 mm, DC 12–24V

Technical specifications:

Model: E3S-GS30P1

Sensor type: Photoelectric, U-type slot ("grooved type")

Output: PNP (sourcing)

Supply voltage: DC 12–24 V (±10%)

Current consumption: ≤ 40 mA (max.)

Signal type: Light-ON / Dark-ON (selectable)

Response time: ≤ 1 ms (max.)

Operating temperature: -25 °C to +55 °C (non-condensing)

Protection rating: IP67 (housing)

Sensing distance/detection: approx. 30 mm with standard object (for GS3 series)

Housing: Metal

Indicators: red LED for light + green stability indicator

Weight: 0.200 kg.

€13.20 pcs
Tax included

The E3S-GS30P1 model is a high-quality industrial photoelectric sensor from the "U-type slot" (grooved type) series, designed for detecting objects passing through a slot (channel) — ideal for applications such as counting, automatic feeders, belt control, etc. This variant features a PNP output, making it suitable for modern control systems. The sensor operates at 12–24 V DC, offers fast response and simplified mounting, without the need for precise alignment of the optical axis.

The housing has a compact shape with a slot through which the material is fed – this facilitates mounting and integration into production lines. It is characterized by high reliability, resistance to adverse conditions and a long service life.

Advantages:

Fast and reliable detection with a response time of up to ~1 ms — suitable for high line speeds.

Slot design ("U-channel") — no need for precise alignment of emitter and receiver, simplified mounting.

PNP output — good compatibility with PLCs, controllers and modern automation systems.

Compact and robust construction, suitable for industrial conditions.

Universal power supply (12–24 V DC) — easy integration.

Protection rating up to IP67 — resistance to dust, moisture and vibrations.
