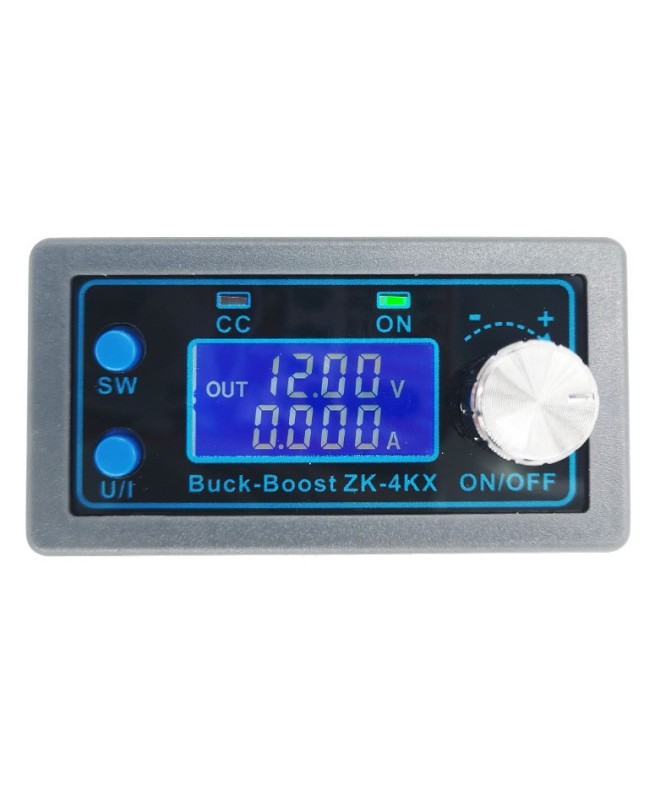

DC-DC Buck Boost Converter - ZK-4KX
Technical specifications:
- Input voltage: 5 – 30V DC
- Output voltage: 0.5 – 30V DC
- Output current: up to 4A (recommended: up to 3.5A for continuous operation)
- Maximum power: 50W (recommended: up to 35W)
- Operating modes:
- Constant Voltage (CV)
- Constant Current (CC)
- Dimensions: 79 x 43 x 26 mm
- Weight: 0.090 kg
Features and advantages:
- Clear colour LCD display showing voltage, current, power and capacity.
- Supports saving up to 10 different configurations.
- Built-in protections against overvoltage, overload, overheating and reverse polarity.
- Suitable for: powering Arduino, charging lithium-ion batteries, controlling LED strips, DC motors, etc.
Kit includes:
1 x ZK-4KX DC-DC Buck Boost module
⚠ Note:
For maximum efficiency and safety, it is recommended to use an additional heatsink or cooling for loads exceeding 2.5A for extended periods.
