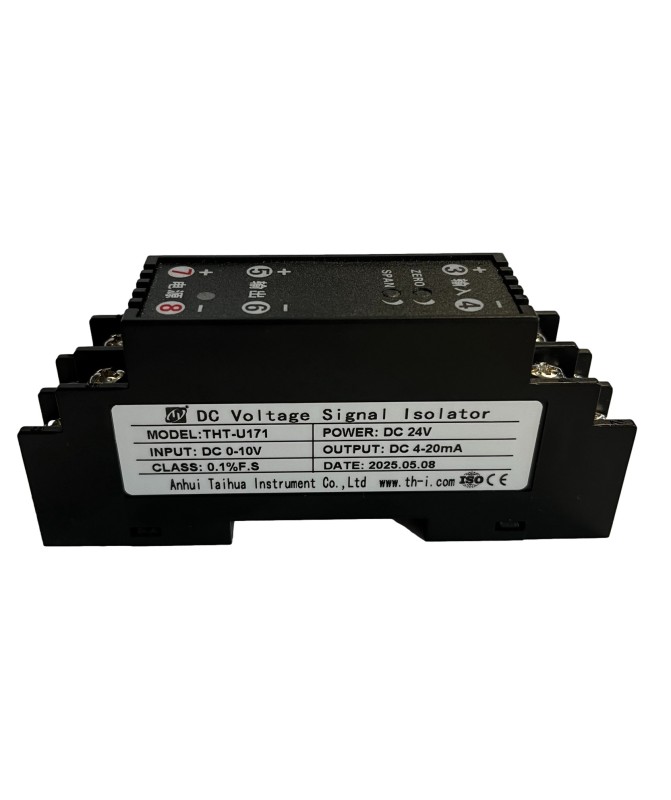

Signal Converter from 0-10V to 4-20mA, Signal Isolator THT-U171
Main features:
- Model: THT-U171
- Input signal: 0–10V DC
- Output signal: 4–20mA DC
- Power supply: 12–24V DC (nominal 24V)
- Isolation: three-way galvanic isolation (input/output/power supply)
- Accuracy: ≤ 0.1% of full scale
- Mounting: standard DIN rail
- Operating temperature: -20°C to +60°C
- Response time: < 1ms
- Low current consumption: < 30mA
- Weight: 0.105 kg.
This high-quality signal transmitter is designed for conversion from an analogue (0-10V) to a current signal (4-20mA), while providing galvanic isolation between the input, the output and the power supply, which makes it ideal for use in industrial automation systems, PLC systems, sensors, control panels and other applications where safe and reliable conversion of analogue signals is required.
Applications:
- Conversion of analogue signals from PLCs/controllers to current signals for sensors and actuators
- SCADA and automated control systems
- Process monitoring and control systems
- Industrial environments where precise and stable signal communication is required
Advantages:
- Reliable isolation for protection against interference and overvoltage
- High accuracy and fast response
- Compact design and easy mounting
- Universal power supply and compatibility with most control systems
