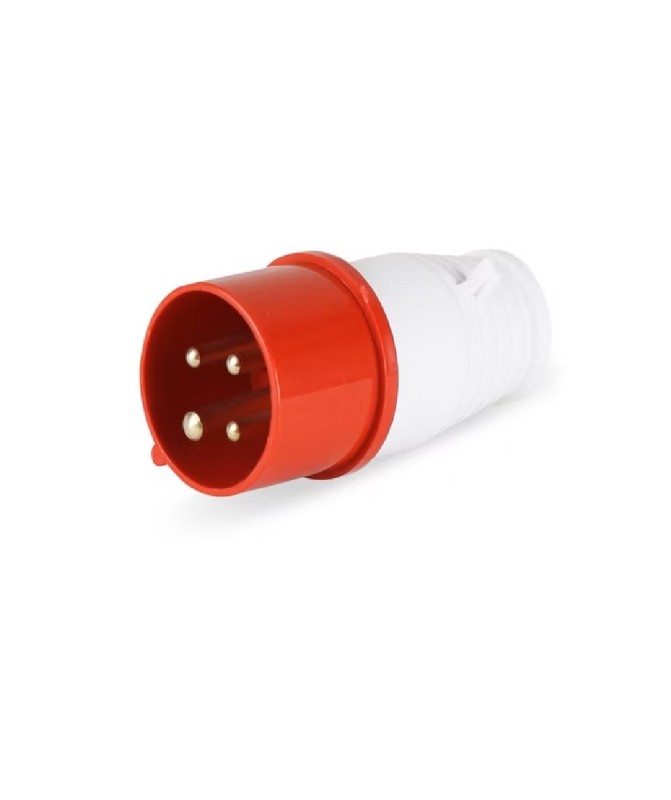

Industrial Plug YM-014 – 16A, 400V, 3P+E (4 pins) IP44

Industrial Three-Phase Movable Plug YM-014 – 16A, 4 Pins (3P+E)

Technical specifications:

Model: YM-014

Component type: Movable industrial plug (Male)

Number of poles: 4 (3P + E) – Three phases and earth

Rated current: 16A

Operating voltage: 380V – 415V AC (Three-phase current)

Earth pin position: 6h (Standard for 400V systems)

Colour: Red

Protection rating: IP44 (Splash-proof – protection against splashes and dust)

Material: Impact-resistant polyamide 6 (PA6), non-flammable and chemical resistant

Contacts: High-quality brass alloy for optimal conductivity

Weight: 0.090 kg.

€3.24 pcs
Tax included

The industrial plug model 014 is a standard component for connecting three-phase consumers to the electrical grid. Designed for intensive use in workshops, construction sites, and industrial zones, it provides a reliable and secure connection for machines with a power rating of up to 16A.

The model features an ergonomic housing that allows for easy plugging and unplugging, even when wearing protective gloves. The construction includes an external tightening nut with an integrated seal, which firmly secures the cable and protects it from pulling out or moisture ingress into the contact area.

✅ Applications:

Three-phase machines

Industrial equipment

Electric motors

Construction sites

Generators

Switchboards and distribution systems

✅ Advantages:

Mechanical durability: The housing is resistant to drops, pressure, and friction, typical of a production environment.

Safe configuration: The pin arrangement (type 3P+E) prevents incorrect insertion into sockets with different voltages or numbers of phases.

Quick wiring: The internal screw terminals are clearly marked (L1, L2, L3 and earth), facilitating the installation of flexible and multi-core cables.
