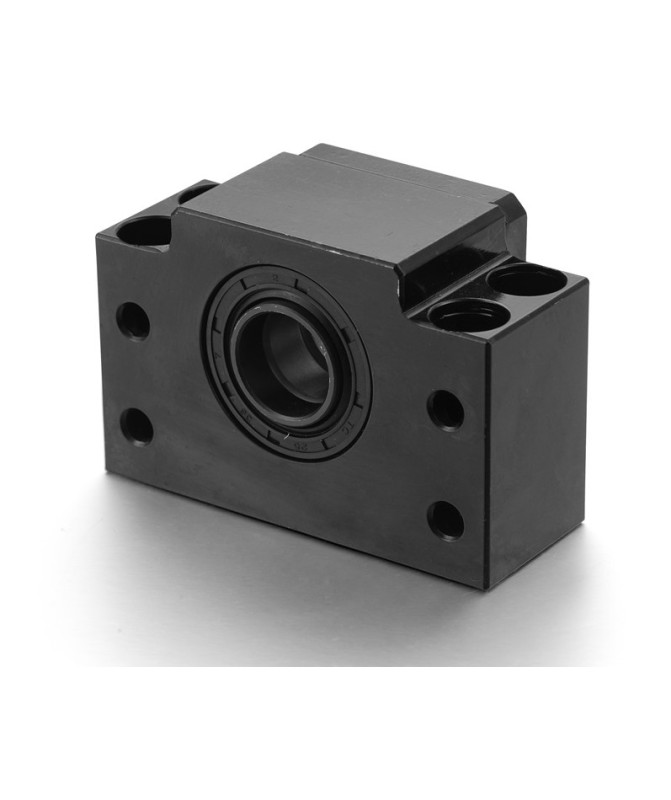

Bearing Support BK 25 - Fixed Mounting - EXLSBK25
Model – BK 25
d1 – 25
L – 42
L1 – 12
L2 – 54
L3 – 9
C1 – 22
C2 – 10
B – 106
H – 80
b ±0.02 – 53
h ±0.02 – 48
B1 – 64
H1 – 70
E – 33
P – 85
d2 – 9
X – 11
Y – 17.5
Z – 11
Weight - 2.150 kg
For correct installation of ball screw pairs, bearing supports must be applied to ensure their correct coaxiality. In practice, two types of bearing supports with fixed and floating mounting have become established. The function of the fixed mounting is to prevent axial displacement of the screw and to guarantee its precise positioning. The floating mounting is intended to compensate for any linear expansion of the screw.
B series bearing supports are designed for mounting perpendicular to the screw axis.
