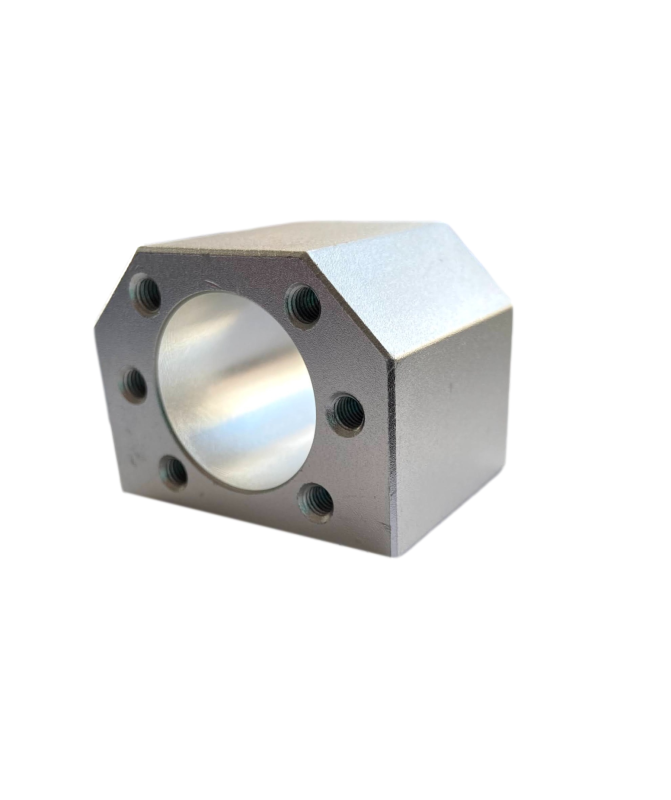

Nut Housing 16 - EXNS16
Model – EXNS16
D – 28
B – 52
H – 40
h – 20
E – 12
L – 40
C1 – 8
C2 – 24
P – 40
X – M5
W – 38
Y – M5
Weight - 0.140 kg
The SFU nut block plays a key role in mechanical motion systems, such as CNC machines and 3D printers. It ensures stability and precision during the movement of the nut and shaft.
Features:
1. Hardness and Durability:
- Hardness: Manufactured with high hardness to withstand significant loads and stresses.
- Corrosion Resistance: Features an anodised coating that provides additional protection against corrosion and wear.
2. Precision:
- Manufacturing: Precisely machined using CNC machines to ensure dimensional accuracy and hole positioning.
- Tolerances: Strict tolerances for minimal deviation during movement.
3. Installation and Maintenance:
- Easy Installation: Easy to install and remove, often using standard tools.
- Maintenance: Minimal maintenance required thanks to high-quality materials and precise manufacturing.
Technical Specifications:
- Material: Aluminium 6061-T6.
- Surface Treatment: Anodising for aluminium
- Nut Hole Diameter: Compatible with SFU nut size
- Tolerances: Tolerances are typically within ±0.01 mm for critical dimensions.
SFU nut blocks are indispensable for any system requiring high precision and reliability in linear motion.
