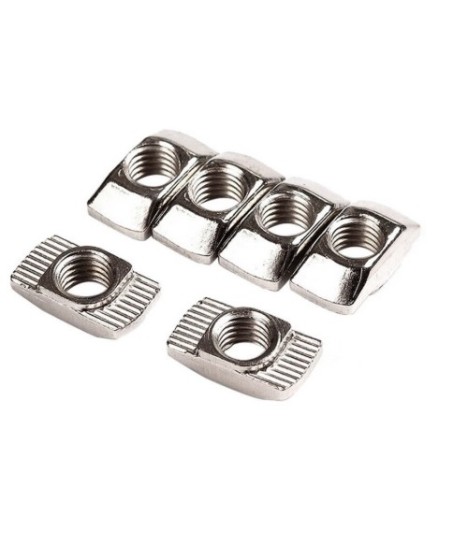

T-slot Nuts - Drop In
|
Model
|
Slot
|
B
|
D
|
G
|
J
|
F
|
C
|
Material
|
Weight
|
Profile
|
|
M 3/6 EX20 |
6 mm |
3 |
10 |
6 |
1 |
6 |
3 |
steel |
0.001 kg |
20x20 20x40 |
|
M 4/6 EX20 |
6 mm |
4 |
10 |
6 |
1 |
6 |
3 |
steel |
0.001 kg |
20x20 20x40 |
|
M 5/6 EX20 |
6 mm |
5 |
9.9 |
5.6 |
1.2 |
6 |
3.2 |
steel |
0.001 kg |
20x20 20x40 |
|
M 3/8 EX30 |
8 mm |
3 |
15.3 |
8 |
1.1 |
8 |
4.5 |
steel |
0.005 kg |
30x30 |
|
M 4/8 EX30 |
8 mm |
4 |
15.6 |
8 |
1.5 |
8 |
4.5 |
steel |
0.005 kg |
30x30 |
|
M 5/8 EX30 |
8 mm |
5 |
15.5 |
8 |
1.1 |
8 |
4.5 |
steel |
0.005 kg |
30x30 |
|
M 6/8 EX30 |
8 mm |
6 |
15.8 |
8 |
2 |
8 |
4.5 |
steel |
0.001 kg |
30x30 |
|
M 4/8 EX40 |
8 mm |
4 |
19.4 |
8 |
2 |
8 |
5.25 |
steel |
0.005 kg |
40x40 |
|
M 5/8 EX40 |
8 mm |
5 |
19.5 |
8 |
2.5 |
8 |
5.3 |
steel |
0.005 kg |
40x40 |
|
M 4/10 EX90 |
10 mm |
4 |
18.8 |
10 |
2.2 |
10 |
5.7 |
steel |
0.008 kg |
90x90 |
|
M 5/10 EX90 |
10 mm |
5 |
18.8 |
10 |
2.7 |
10 |
5.7 |
steel |
0.008 kg |
90x90 |
T-slot nuts are a type of fastener designed for use in T-slots of aluminium or other metal profiles. These nuts are often used in modular installation systems, such as assembled structures, as they allow for flexible and easily modified designs, making them indispensable in a range of engineering and manufacturing applications.
Key features:
- Shape: The nut is T-shaped, allowing it to slide along the T-slot.
- Material: Steel.
- Thread: The interior of the nut is threaded to fit standard metric or imperial bolts.
- Installation: The nut is inserted into the slot from the top of the profile and moved to the desired position, after which a bolt is screwed in to secure it.
- Advantages: Easy to install and reposition, high connection strength, reusable.
Main applications:
- Assembly of frames and structures from aluminium profiles.
- Securing various components in automated systems.
- Used in machine tools and other industrial installations for securing parts.
