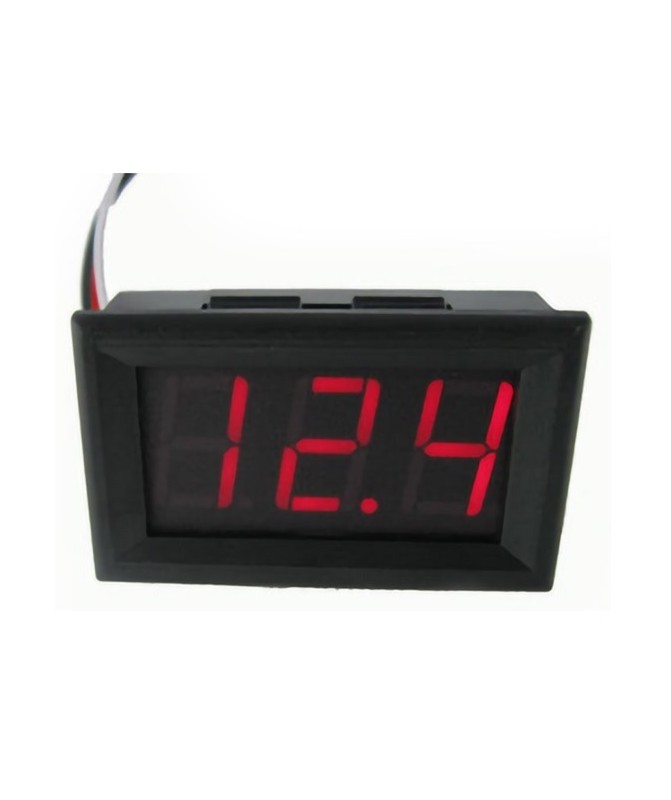

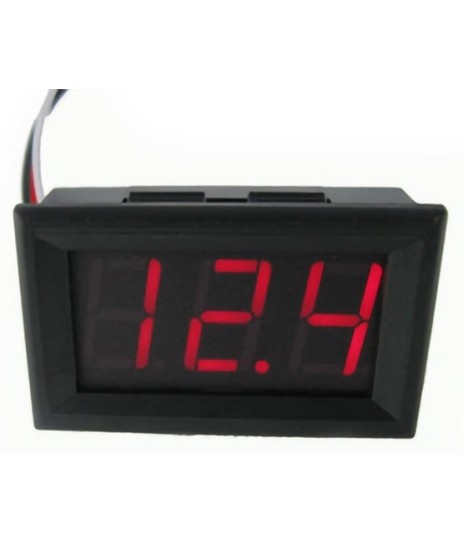

Digital DC Voltmeter 4.5 - 30V - EX4530V

Digital DC Voltmeter 4.5 - 30V - EX4530V

Voltmeter specifications:

  • Input voltage: 4.5V - 30V DC
  • Reverse voltage protection!
  • Standby consumption: < 20mA
  • Refresh rate: 300 milliseconds
  • Maximum precision: 0.01 V
  • Operating temperature: -20 to +65 °C
  • Display size: 0.56 inches, 7-segment LED
  • Dimensions: 48 mm x 29 mm x 22 mm
  • Available in two colours: RED and BLUE
  • Mounting dimensions: 46 mm x 27 mm, snap-in (press-fit) mounting
Model: Red
€2.16
Tax included

This digital voltmeter is used to measure DC voltage within the range of 4.5-30VDC. Below 4.5V the voltmeter does not work, above 30V it will burn out. Reverse voltage protection is available. Standby current consumption is approximately 20mA. Up to 10V the precision is 0.01V, above 10V it is 0.1V. The voltage is displayed on a 7-segment LED display with a total of 3 digits. The voltmeter is available in two colours – red and blue. Installation is achieved by pressing into a hole with approximate dimensions of 46 x 27 mm.

Advantages:

- Small module size allows for easy integration into devices

- Reverse voltage protection

- Low current consumption

- High readability of display readings

Applications:

- Automotive applications

- Industrial applications

- Monitoring and control of DC voltage
